High Quality PLC Panel Loaded with Siemens
Accurate thickness of slab.
Lowest Maintenance.
Increased life of machine.
Power saving options available.
Axis controlled by semi CNC control System.
Heavy Beams to avoid vibrations.

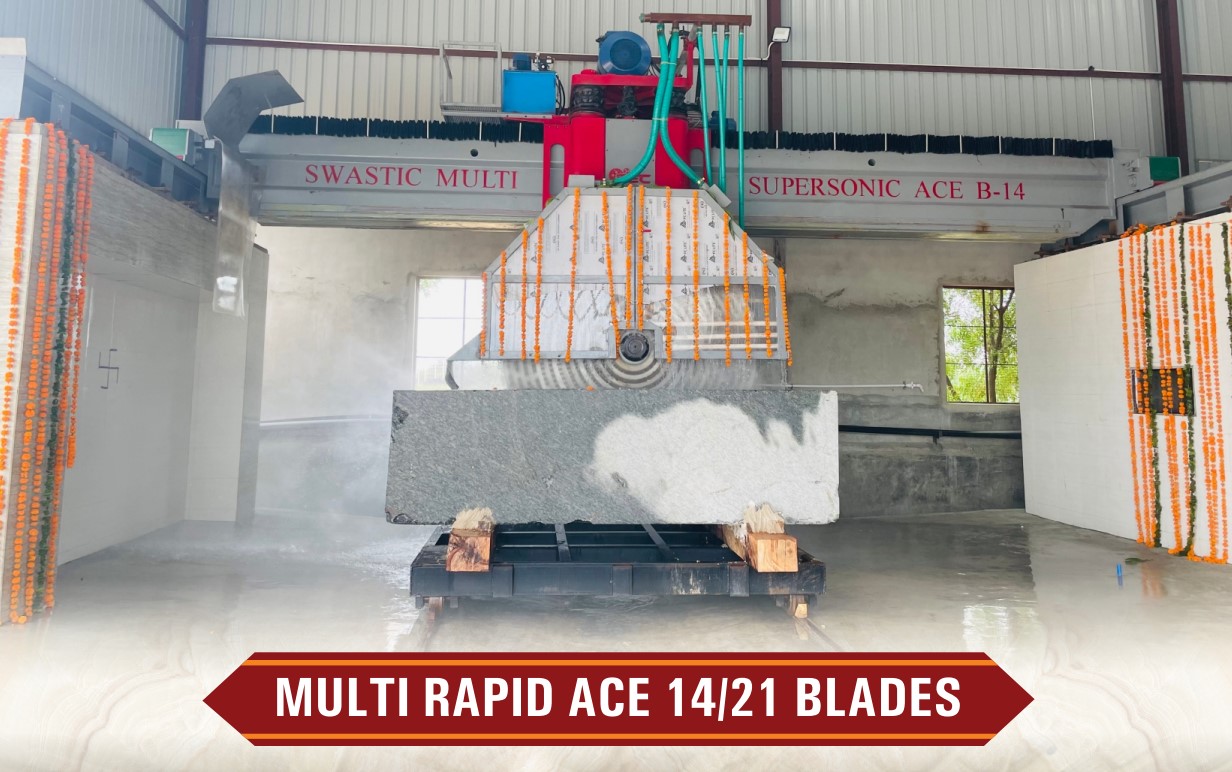

Models  Specs  |
B-14 | B-10 |
| Blade Capacity | Up to 14 Blade | Up to 10 Blade |
| Siab Size as per 2.4 mtr. Blade Dia |
Height - 40.25 Inches Length - 12 Feet |
Height - 40.25 Inches Length - 12 Feet |
| Power | |||
| Main Motor | 100 HP / 1440 RPM | 75 HP / 1440 RPM | |
| X Axis (Left/Right) | 5 HP | 5 HP | |
| Y Axis (Brd./Size) | 2 HP | 2 HP | |
| Z Axis (Up / Down) | 5 HP | 5 HP | |
| Motion System | |||
| X Axis | LM Guide | LM Guide | |
| Y Axis | Forged "V" Wheel | Forged "V" Wheel | |
| Z Axis | 4 No. Chromed Bush With Hydraulic System |
4 No. Chromed Bush With Hydraulic System |
|
| Control System | High Quality PLC Panel Loaded wiyj Siemens |
High Quality PLC Panel Loaded wiyj Siemens |
|
| Wieght System | 18 (Approx) | 18 (Approx) | |
Heavy weight beams flled with concrete to avoid vibrations
High Quality PLC Panel Loaded with Siemens Parts.
Super Fast X Axis Movements from LM Guide and Round Bars
Highest Production Capacity
Negligible Maintenance
High Quality Paint to avoid corrosion
Customized Trolley Sizes
Motorised Trolley on demand
Standard Slab thickness 17mm but Optional
size are available on demand

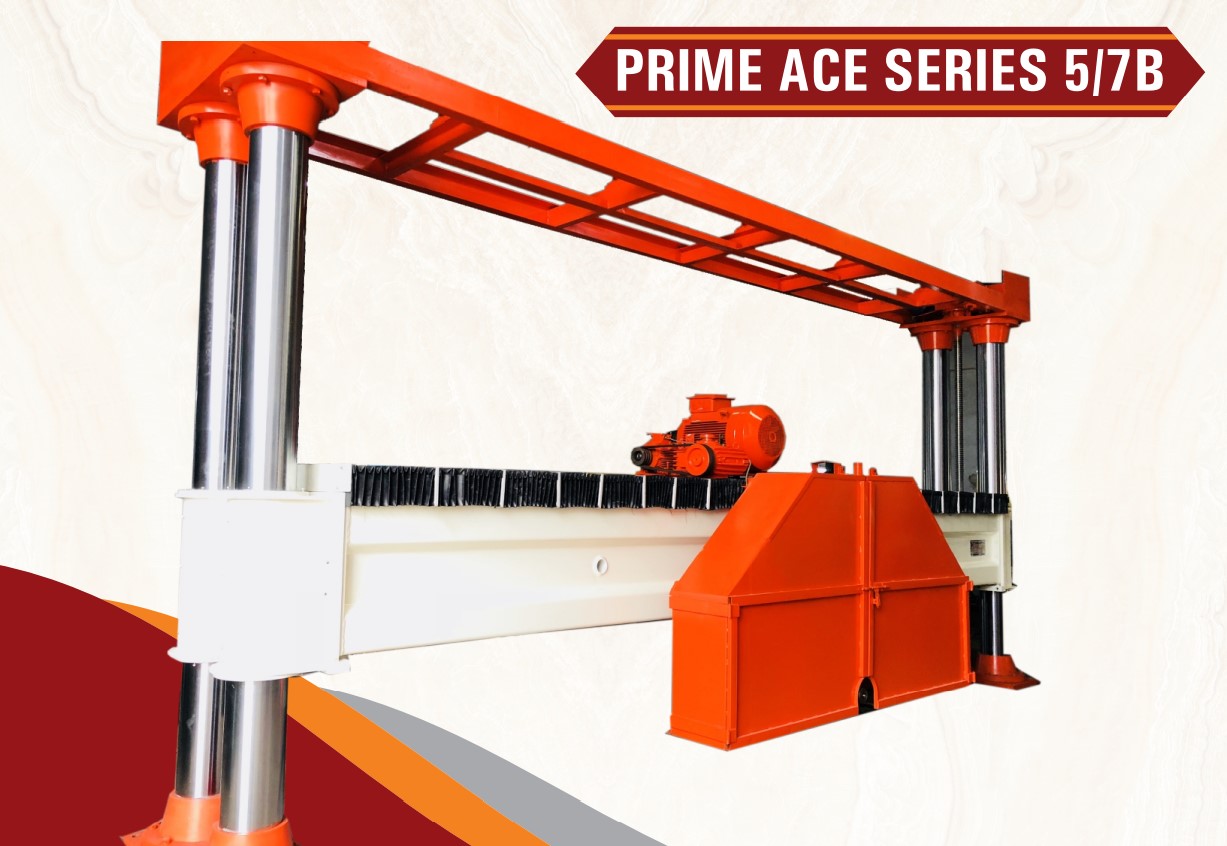

| Models Specs |
5 Blade | 7 Blade | ||||||||||||||||
| Power (HP) |
|
|
| Motion | |||
| X Axis (Left/Right) | LM Guide | Round Bar Guide | |
| Y Axis (Brd./Size) | 5 Crew | Screw System Harden Chrome Pipes | |
| Z Axis (Up/Down) | PLC Loaded System | PLC Loaded System | |
| Beam Lenght | 20' | 20' | |
| Weight (Approx) Tons | 15 | 15 | |
